Sea Kayak Trailer

“Click Images to Enlarge”

SKU: N/A Categories: ,

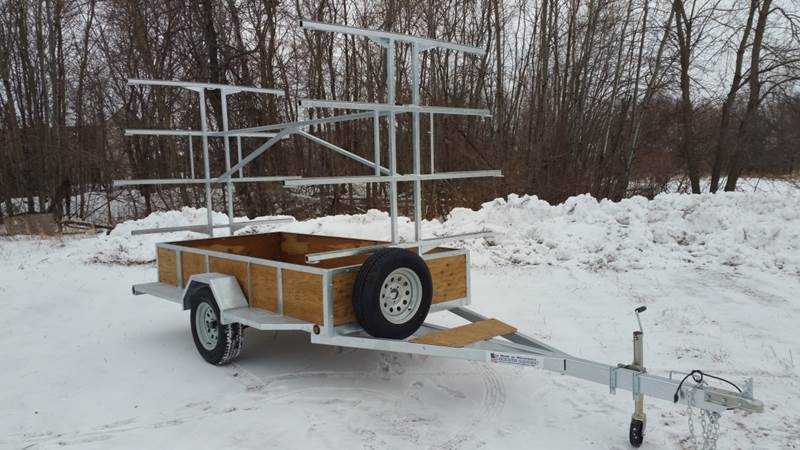

The Remackel Sea Kayak trailer is a 5’x10′x16″ side trailer bed with an 8ft tongue, 3500lb axle on 15″ full size tires. This trailer can hold up to a 22ft sea kayak and a total of 8 sea kayaks with this one trailer. We can build our sea kayak trailers in a two, four, six and eight place model trailer, depending your transporting needs. Just like our canoe trailers and kayak trailers our sea kayak racks are removable, so you can use this as a 5’x10′ utility trailer when you need too. Unique to our trailer are the loading steps on the side of the trailer to help you load your sea kayaks.


Standard  Features:

  • Removable Sea Kayak Racks
  • 3500lbs axle with three leaf spring
  • Full size ST205/80R15 15″ tire on galvanized

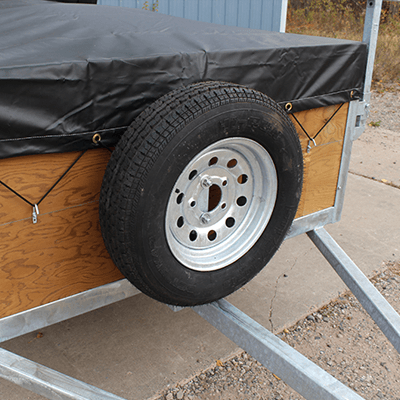

  • 15″ Spare tire (ST1205/80R15 on galvanize rim)
  • Galvanized trailer frame and sea kayak racks

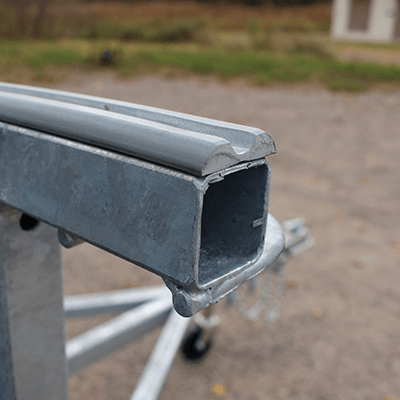

  • Rubber protective strips on all sea kayak racks
  • DOT approved safety chains
  • Jack stand with wheel (Rated for 1000lbs)
  • DOT approved LED Lights

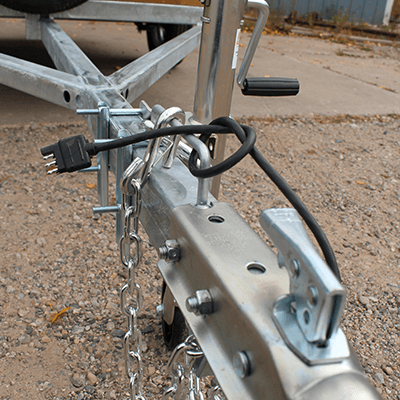

  • 8 foot tongue

Optional Features:

  • Tie down Rings (5 Rings, 1200lbs of pull strength per ring)

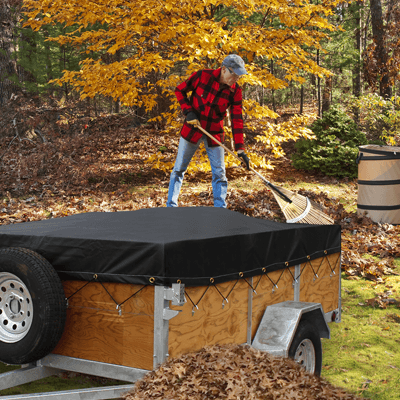

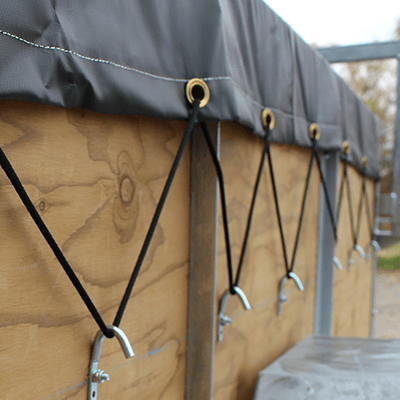

  • Black Waterproof Canvas Cover


Trailer Weight: 800lbs
Materials: Hot dipped galvanized tubular steel and angle iron

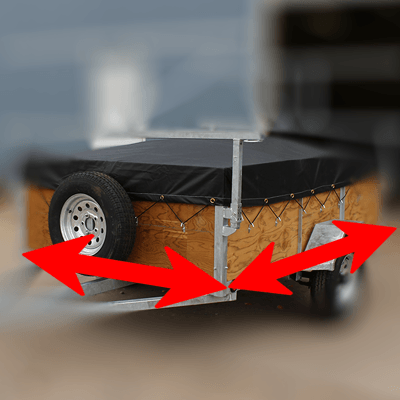

Trailer bed Dimensions: 5’x8′ trailer bed (Length is 8ft 1 3/4″ long so you can lay a sheet of 4’x8′ plywood flat in the bed of the trailer)

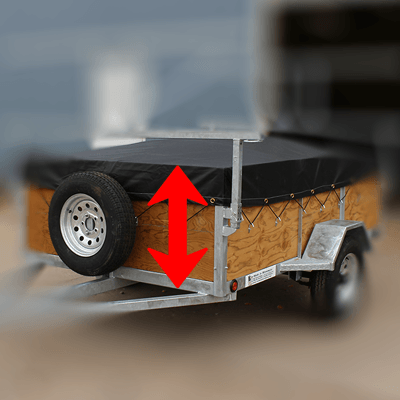

Trailer sides: 16″
Trailer Length: 18′ 6″ long
Tongue: 8 feet

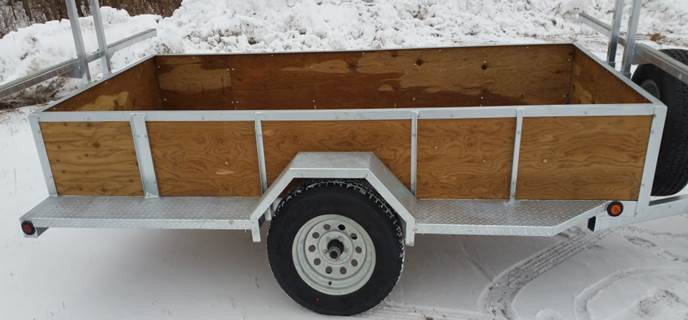

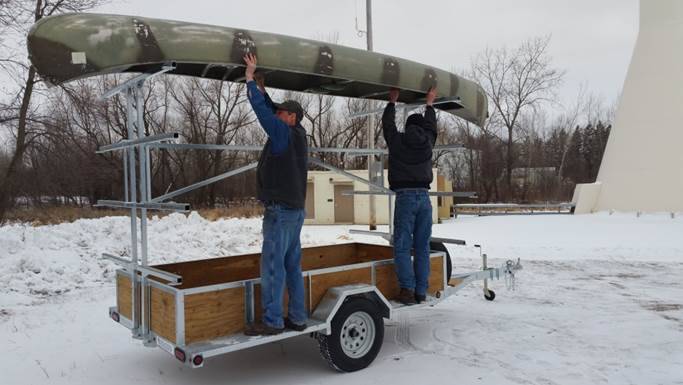

Sea Kayak Loading Step: Approx 12″ wide and 18″ from the ground, made of 11 gauge diamond plate
Trailer Hauling Capacity: Has a 3500 lb axle, can haul 2700 lbs of gear, sea kayaks, etc.

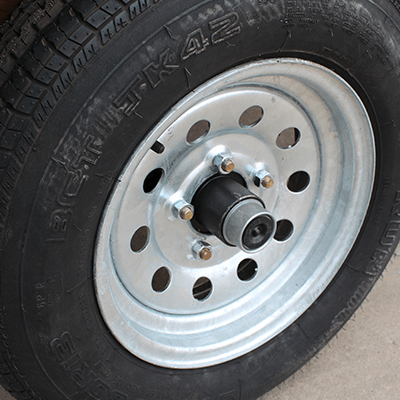

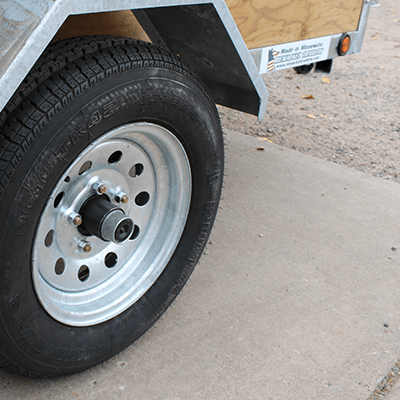

Tires: Full size ST205/80R15 15″ tires on galvanized rims (includes spare tire)

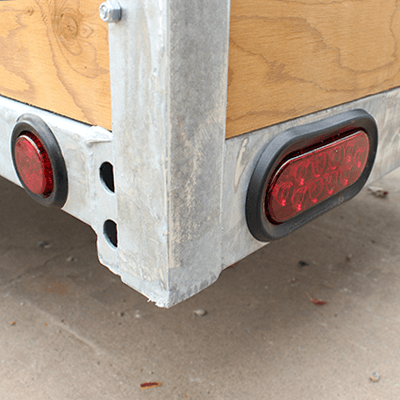

Lights /Electrical DOT approved 9 Diode LED lighting, Flat four electrical connector

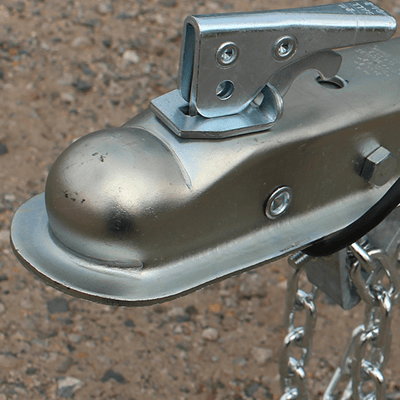

Coupler: 2″ coupler, Jack stand with wheel


Sea Kayak Rack Dimensions: 32″ horizontal distance per place and 19″ vertical distance between racks, Top bar is 72″ long, Distance between racks are 10 feet 6 inches apart.

Sea Kayak Hauling Capacity: 14-22ft sea kayak

Height from the ground to the top of the sea kayak rack: 8′ 10″

Height from loading step to the top of the sea kayak rack: 7′ 4″

Tie Down Loops: Each horizontal rack has 3 tie down loops per rack to secure your canoe or kayak to the rack
